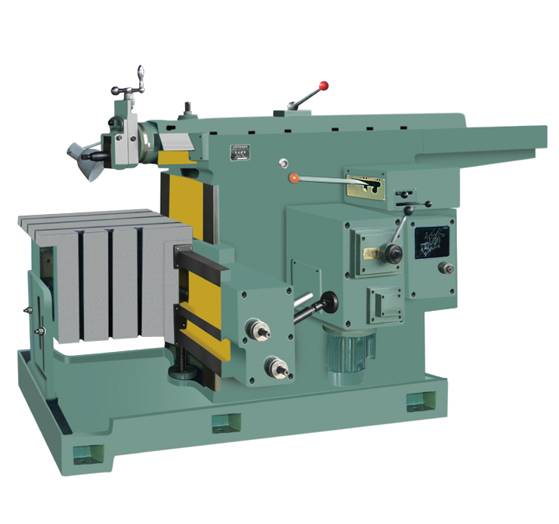

shaper machine
|
Model |
BC6050 |
BC6063/BC6066 |
BC6085 |
| ||
|
Max.shapping length(mm) |
500 |
650 |
630/660 |
850 |
| |
|
Max.range of the borizontal movement of the table(mm) |
525 |
630 |
385 |
400 |
| |
|
Max.distance between the ram bottom and table(mm) |
370 |
380 |
630 |
710 |
| |
|
Max.length of the vertical movement of table(mm) |
270 |
315 |
360 |
360 |
| |
|
Dimensions of table top(L脳W)(mm) |
440脳360 |
630脳400 |
630脳400/660脳400 |
800脳450 |
| |
|
Max. stroke length of the toolhead(mm) |
120 |
120 |
120 |
160 |
| |
|
Max.swivel angle of the toolhead(掳) |
卤60掳 |
卤60掳 |
卤60掳 |
卤60掳 |
| |
|
Max.section of tool(W脳T)(mm) |
20脳30 |
20脳30 |
20脳30 |
20脳30 |
| |
|
Number of ram reciprocation per minute(NO/min) |
14-80 |
14-80 |
14銆20銆28銆40銆56銆80 |
17銆24銆35銆50銆70銆100 |
| |
|
Range of table feed |
Horizontal |
0.2-0.25 |
0.2-0.25 |
0.2~2.5 |
0.2~2.5 |
|
|
Vertical(mm/recip) |
0.08-1 |
0.08-1 |
0.08~1.00 |
0.08~1.00 |
| |
|
Speed of rapid travel of table |
Horizontal |
0.95 |
0.95 |
|
1.2 |
|
|
Vertical |
0.38 |
0.38 |
0.58 |
| ||
|
width of the T-slot for center positioning(mm) |
18 |
18 |
18 |
22 |
| |
|
Power of the main motor(kw) |
3 |
3 |
3 |
5.5 |
| |
|
N.W/G.W(kg) |
1650 |
2200 |
1750/1870 |
2950脳1325脳1693 |
| |
|
1800/1920 |
| |||||
|
Overall dimensions(L脳W脳H)(mm) |
2160脳1070脳1194 |
2382脳1210脳1504 |
2342脳1225脳1480 |
2940/3090 |
| |
|
2357脳1225脳1480 |
| |||||
