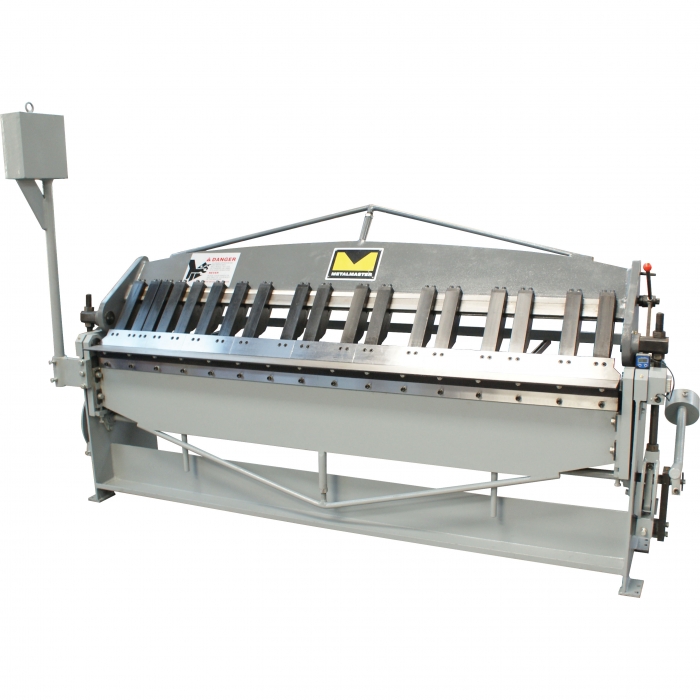

hydraulic folder

Structural & Operating Features
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚high structural rigidity from heavy plate steel box construction with continuous welded seams
❚bending beam powered by dual hydraulic cylinders
❚fully integrated and enclosed electric / hydraulic system with large oil reservoir to maintain low oil temperature
❚high load capacity dual spherical plane bearings utilized at bending beam pivots and over-centre clamp bearings
❚precise electric / hydraulic controls with manual inching of bending beam
❚utilization of easy to set micro-switches provides accurate & infinitely adjustable angle control to the folding apron
❚comprehensive equipment protection from electric and hydraulic overload systems
Hydraulic System
❚high quality componentry ensures reliable performance for years of continuous operation
❚powerful direct coupled hydraulic pump and motor provides efficient, rapid operation
❚unique electric / hydraulic control ensures safe and simple operation

Specifications
❚high bending angle of 0-135°
❚greatest depth of box bent 185 mm
❚powerful motor
❚200 mm of clamping beam
❚hydraulically operated bending and clamping beam for efficient heavy duty operation
❚24 volt control wiring
❚bending fingers made from hardened material, maximizing life

NC1 Programmable Controller
❚operation in manual, step program, automatic modes and repeat modes
❚99 station memory setting operating in, manual, automatic and repeat modes
❚designed to control a 4 ram folder with up, down, clamp and release functionality
