Light Pole Shut-welding Machine
APPLICATION: FOR AUTOMETIC WELDING LIGHT POLE MAX LENGTH 14000MM

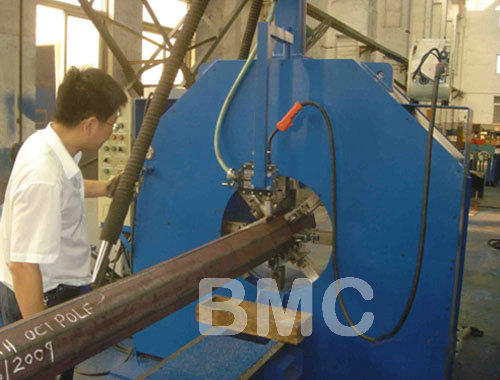

LIGHT POLE SHUT-WELDING MACHINE MODEL : 340/14000, Normally , it is suitable for one piece type polygonal and circle pole. The pole can be same diameter type or taper type. it is automatic welding line, the dolly with speed adjustable motor can pull the light pole from small end to big end, The hydraulic cylinder through mechanical chain, worm wheel push the clamping wheel to close the pole and do welding at same time.
The machine inculuds the following items:
1. Long working table with rack for pull dolly.
2. Dolly for pulling pole

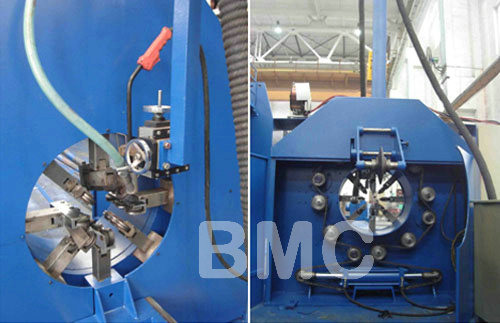

3. Hydraulic clamping and welding unit (including 2 sets clamping wheels for polygonal and circle pole)
4. Submerged Arc Welding and Gas-shielded welding(CO2) Welding system, including welding wire feeding system.
5. The flux recovering system
6. back support unit
7. hydraulic system
|
TECHNICAL FEATURES | ||
|
1 |
Workable Diameter |
60-340mm, |
|
2 |
Workable length |
14000 mm |
|
|
DOLLY LENGTH |
1500 MM |
|
3 |
Suitable light pole Thickness |
3-6 mm |
|
4 |
Power of Motor for Pump |
4 KW |
|
5 |
Power of Motor for pulling dolly |
4 KW, AC speed changeable type. |
|
6 |
Welding Machine |
630A, (Submerged Arc Welding and Gas-shielded welding(CO2) Welding) |
|
|
Welding wire diameter |
1.2,1.6~2mm welding wire, according the pole thickness to do selection |
|
7 |
Working Speed |
1.1~2m/min (Note: different thickness speed will be different) |
|
8 |
Gross weight |
6500 kg |
|
9 |
Overall sizes (mm) |
24000x1800x1800 mm |
16meter table + 7 meter鈥檚 back support also include
