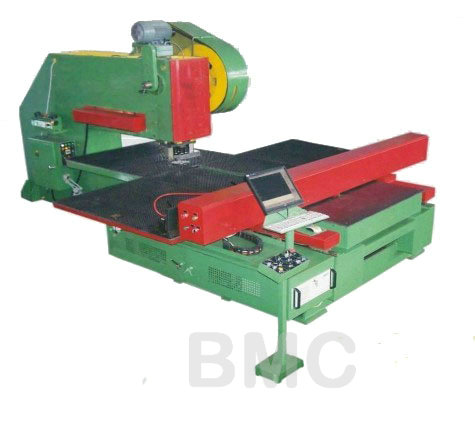

Automatic CNC Punching Machine
Main technical specifications:
|
Technical parameter |
Model:Q25B | |
|
Press Capacity |
25kn(25tons) | |
|
Max thickness(mild steel sheet) |
6mm | |
|
X-axis stroke |
2500mm | |
|
Y-axis stroke |
1250mm | |
|
Sheet metal size |
2500mm 1250mm | |
|
Throat Depth |
1250mm | |
|
Max,processing weight |
105kg | |
|
Punching speed |
160HPM | |
|
worktable moving speed |
40m/min | |
|
machining accuracy |
0.1mm | |
|
Tool size: |
roundness |
size:A+B,diameter<31.5 |
|
squareness |
size:A+B,diagonal<31.5 | |
|
other shapes |
size:A+B,diameter of circumcircle <31.5 | |
|
Pressure air |
flow |
0.1m3/min |
|
pressure |
0.5MPa(5.0kgf/cm3) | |
|
Machine weight |
8.8tons | |

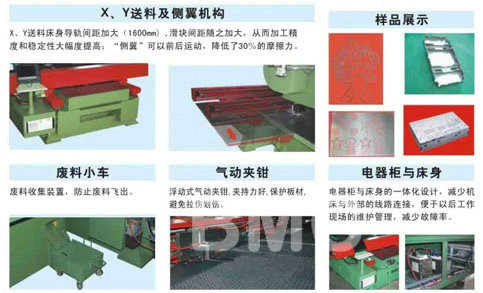

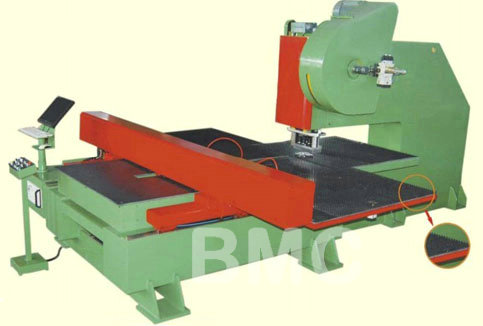

Detail Structure photos:
