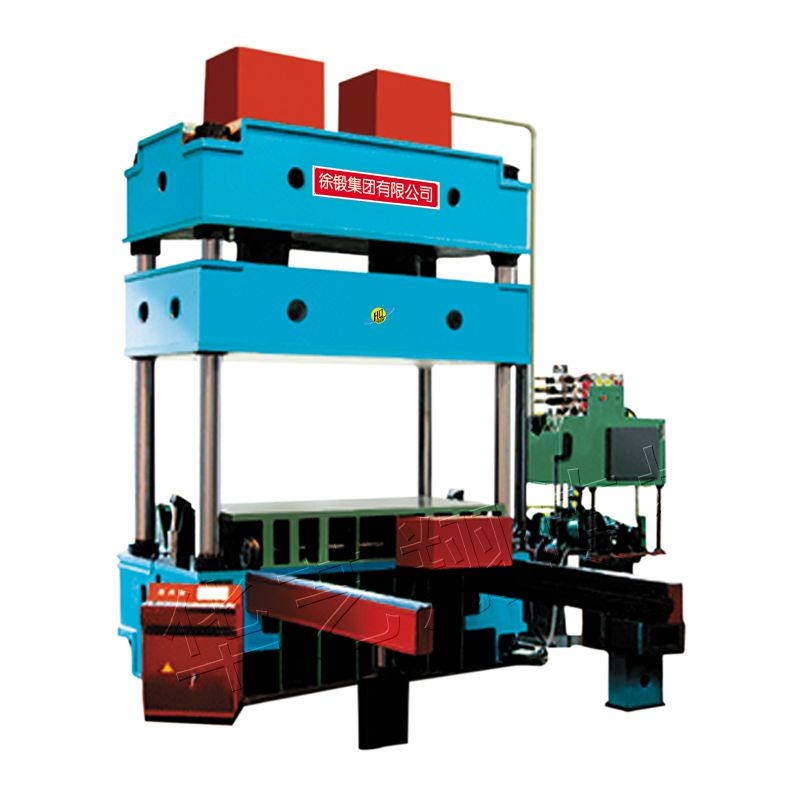

YT32 Series Four-Column Type Hydraulic Press
|
Item |
Unit |
Y32-63 |
Y32-100 |
Y32-200 |
Y32-315 |
Y32-315A |
Y32-500 |
Y32-500A |
Y32-630 |
Y32-800 |
Y32-1000 |
Y32-1250 | |
|
Nominal Pressure |
kN |
630 |
1000 |
2000 |
3150 |
3150 |
5000 |
5000 |
6300 |
8000 |
10000 |
12500 | |
|
Ejecting Force |
kN |
190 |
190 |
280 |
400 |
400 |
1000 |
1000 |
1000 |
1000 |
1000 |
1500 | |
|
Back Stroke Force |
kN |
190 |
320 |
450 |
600 |
600 |
1000 |
1000 |
1250 |
1200 |
1300 |
1300 | |
|
Stroke Length |
mm |
400 |
600 |
710 |
800 |
800 |
900 |
900 |
900 |
900 |
900 |
900 | |
|
Ejecting Stroke |
mm |
150 |
200 |
200 |
250 |
250 |
350 |
350 |
350 |
350 |
350 |
350 | |
|
Opening Height |
mm |
600 |
900 |
1120 |
1250 |
1250 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 | |
|
Speed of Slide |
Idle Stroke |
mm/S |
26 |
80 |
120 |
100 |
100 |
100 |
120 |
140 |
120 |
120 |
120 |
|
Work |
mm/S |
15 |
10 |
10-15 |
6-12 |
6-12 |
5-12 |
4-10 |
5-12 |
6-15 |
5-12 |
4-10 | |
|
Back Stroke |
mm/S |
75 |
50 |
85 |
65 |
65 |
80 |
60 |
80 |
110 |
100 |
100 | |
|
Ejecting Speed |
Upward |
mm/S |
80 |
80 |
95 |
95 |
95 |
80 |
80 |
80 |
140 |
140 |
140 |
|
Back |
mm/S |
160 |
160 |
135 |
135 |
135 |
160 |
150 |
160 |
150 |
150 |
150 | |
|
Bolster Surface |
L.R. |
mm |
580 |
690 |
1000 |
1260 |
2000 |
1400 |
1600 |
2200 |
1500 |
1500 |
1500 |
|
F.B. |
mm |
490 |
630 |
900 |
1120 |
1400 |
1400 |
1600 |
1400 |
1500 |
1500 |
1500 | |
|
Overall Dimension |
L.R. |
mm |
790 |
960 |
1340 |
1660 |
2020 |
4060 |
5300 |
5000 |
5500 |
5800 |
6000 |
|
F.B. |
mm |
490 |
630 |
940 |
1160 |
1400 |
1800 |
1800 |
1800 |
2500 |
2500 |
2500 | |
|
Above Ground |
mm |
2592 |
3280 |
3950 |
4390 |
4680 |
5400 |
6130 |
5700 |
7100 |
7500 |
7900 | |
|
Power of Motor |
KW |
7.5 |
7.5 |
22 |
22 |
22 |
37 |
44 |
45 |
74 |
74 |
74 | |
