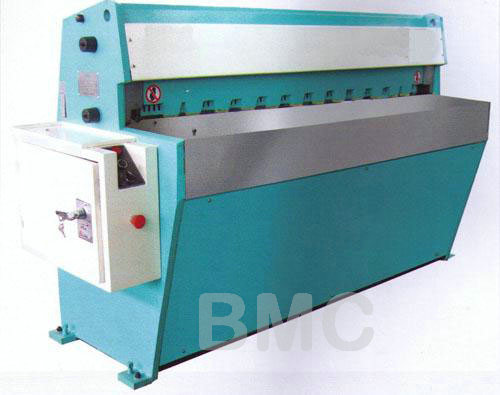

Q11D Truecut Mechanical Shearing Machine
Performance:
This machine is different from the traditional driving method of mecanical shears.It is one of the most advanced mini mechanical shears and enjoys good reputation both at home and aboard.The lower cutting angle and inclined shearing direction reduces bowing and twist to a minimum.
Blade clearance is easily set by a manually operated "Quick set" device,its an ideal truecut machining equipment of sheet metal and nonferrous sheet metal.
Technical specification:
|
Specification
parameter |
3.5×1250 |
3.2×2000 |
3.2×2500 |
3.2×3050 | |
|
Shearing thickness(mm) |
3.5 |
3.2 |
3.2 |
3.2 | |
|
Shearing width(mm) |
1250 |
2000 |
2500 |
3050 | |
|
Shearing angle(º) |
1 º30’ |
1º20’ |
1º20’ |
1 º30’ | |
|
Number of stroke(min-1) |
47 |
47 |
47 |
47 | |
|
Back gauge range(mm) |
0~650 |
0~650 |
0~650 |
0~650 | |
|
0~750（optional） |
0~750(optional) |
0~750(optional) |
0~750(optional) | ||
|
Height of the worktable(mm) |
800 |
800 |
800 |
860 | |
|
Motor power（KW） |
5．5 |
7．5 |
11 |
11 | |
|
Overall dimension(mm) |
Length |
1860 |
2624 |
3124 |
3599 |
|
Width |
2210 |
2210 |
2210 |
2448 | |
|
Height |
1180 |
1180 |
1180 |
1290 | |
|
Weight |
1.5 Ton |
2.3 Ton |
2.7 Ton |
About 3.2 Ton | |
