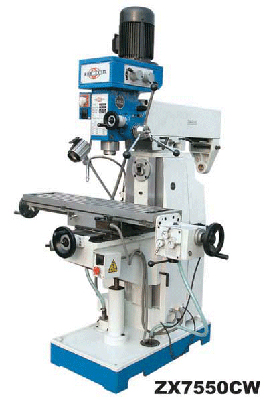

ZX6350D ZX6350C ZX7550CW ZX50C ZXTM40
|
SPECIFICATION |
ZX6350D |
ZX6350C |
ZX7550CW |
ZX50C |
ZXTM40 |
|
Drilling capacity (mm) |
50 |
50 |
50 |
50 |
40 |
|
End milling capacity mm |
120 |
120 |
100 |
100 |
100 |
|
Vertical milling capacity mm |
25 |
25 |
25 |
25 |
20 |
|
Boring capacity mm |
120 |
120 |
120 |
120 |
120 |
|
Tapping capacity mm |
M16(vertical tap) |
M16(vertical tap) |
M16 |
M16 |
M16 |
|
Distance between spindle nose and worktable mm |
100-480 |
100-480 |
90-490 |
38-430 |
120-550 |
|
Range of spindle speed r.p.m |
230-1825(vertical)? 40-1300(horizontal) |
115-1750(vertical) 40-1300(horizontal) |
115-1750(vertical)? 60-1350(horizontal) |
230-1825 |
168-3160 |
|
Spindle travel mm |
120 |
120 |
120 |
120 |
120 |
|
Table size mm |
1200 x 280 |
1200 x 280 |
1000 x 240 |
900 x 240 |
800 x 240 |
|
Table travel mm |
660 x 210 |
660 x 210 |
400 x 230 |
400 x 230 |
400 x 250 |
|
Overall dimensions mm |
1420 x 1120 x 2095 |
1420 x 1120 x 2095 |
1280 x 1100 x 2080 |
1100 x 970 x 1650 |
1100 x 1050 x 1330 |
|
Motor power kw |
(vertical)0.85/1.5 (horizontal) 2.2 |
(vertical)0.85/1.5 (horizontal) 2.2 |
(vertical)0.85/1.5 (horizontal) 1.5 |
1.5 |
1.5 |
|
N.W/G.W kg |
1300/1400 |
1200/1350 |
850/1000 |
500/600 |
410/460 |
